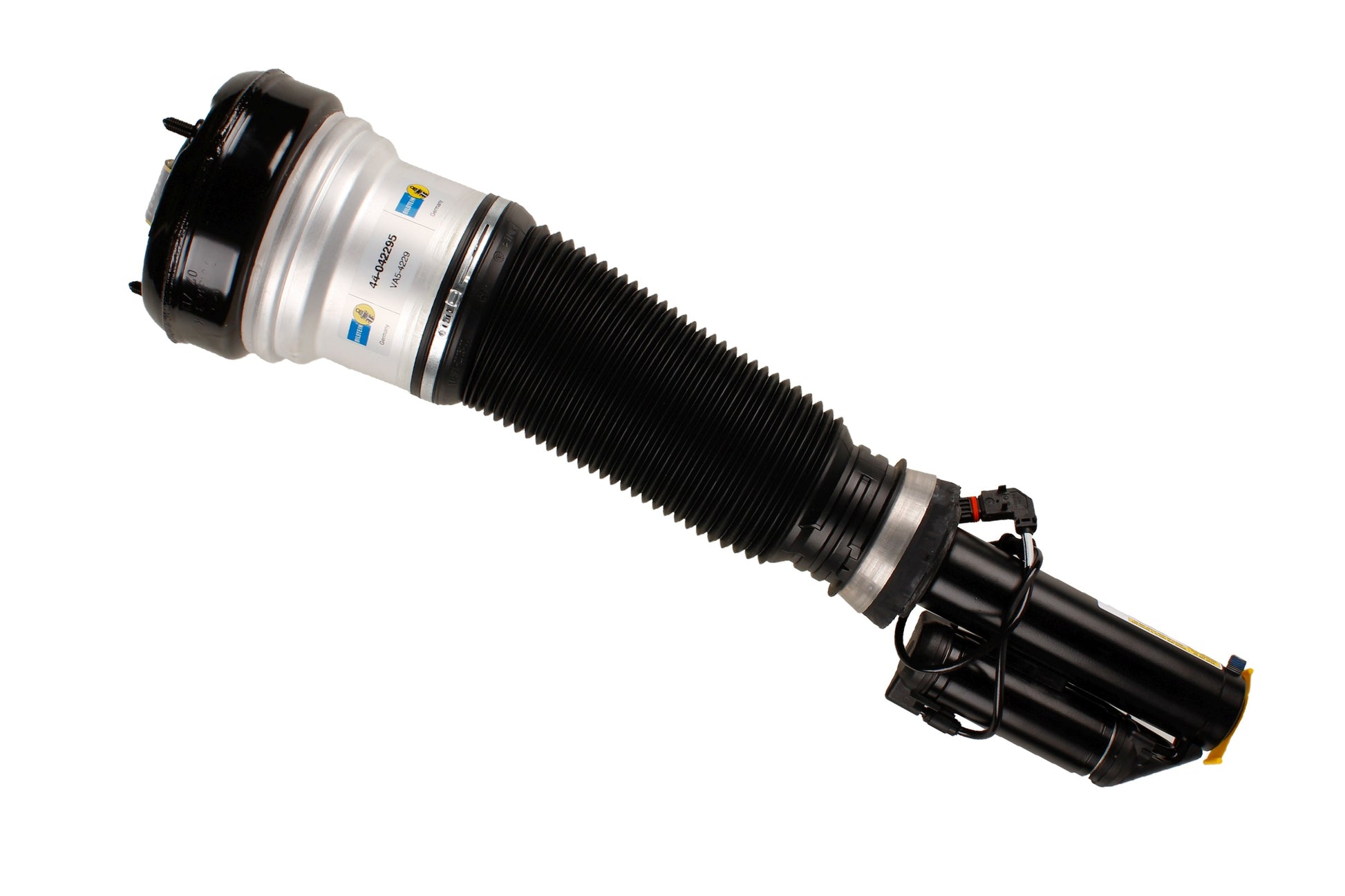

BILSTEIN B4 OE SELF-LEVELING AMC SHOCK ABSORBER FRONT SINGLE

The best BILSTEIN air suspension technology for your car.

In close cooperation with Mercedes-Benz, we developed the BILSTEIN B4 air suspension module for maximum driving comfort. The revolutionary design provides damping, suspension and level control in one single part. The BILSTEIN B4 air suspension module is available for active and passive systems and is therefore the ideal OE replacement part for a perfect driving experience as on day one.

Technology:

BILSTEIN gas-pressure technology

• Traditional oil shock absorbers, when put under extreme stress, can lead to oil foaming which causes shock fading and results in damping power reduction. In the 1950s BILSTEIN found the solution to this problem by developing gas-pressure technology. With the first installation of the monotube gas-pressure shock absorber on series produced Mercedes-Benz vehicles in 1957, we established the technology as an industry standard Ñ a standard which continues today in both monotube and twin-tube designs. This means more reliable shock absorption and suspension under any load, and added safety in dynamic driving situations.

BILSTEIN monotube / Upside-Down technology

• BILSTEIN monotube gas-pressure shock absorbers were the first in series production and have remained the equipment of choice for those who demand the most from their vehicle. Whether driving in poor driving conditions, sporty driving, or competitive motorsports, our monotube technology provides greater damping power due to the larger surface area of the piston. This results in improved handling, consistent performance, and longer service life. Increased installation flexibility allows engineers to find the optimum mounting position. BILSTEIN also uses upside-down monotube technology which allows the piston rod to be installed at the bottom of the shock tube body. A wear-resistant chromium tube moves up and down freely by incorporating low friction bearings. Both the support and lateral forces are distributed across a larger area than in twin-tube systems, and the torsional strength of the connection between the wheel and vehicle body is increased.

BILSTEIN twin-tube technology

• More than 90 % of all series vehicles are equipped with twin-tube shock absorbers. Twin-tube shocks utilize double-walled technology, where the piston divides the interior oil chamber into two working chambers. Under load, the piston pushes the oil down through the inner working chamber and up into the outer chamber. During rebound, the oil flows back through the piston valve to create a damping effect. Thanks to our close relationships with top automotive manufacturers, BILSTEIN can ensure all OE replacement shocks are designed to match the quality and performance of the original shock absorber.

BILSTEIN OE quality

• If the designation original equipment did not exist, it would have to be invented for us. For more than 60 years, we have been the development partner of choice for the suspension and shock absorber systems of renowned automakers Ñ manufacturers in the premium segment as well as high-volume manufacturers. From the development of suspension components for series production to high-performance suspensions for motorsports or the production of high-quality OE replacement, our products and expertise are in high demand. Our comprehensive product range with high market coverage and availability includes everything Ñ from OE replacement to tuning and motorsports. This is how we ensure the legendary BILSTEIN driving experience during the entire vehicle life.

BILSTEIN air suspension

• Not all air springs are the same. Continuing its reputation as a pioneer in original equipment manufacturing and OE replacement, BILSTEIN air springs provide more than just conventional dampening. Counter pressure in the airbags ensures smooth and level driving characteristics even under varying loads. Our passive system offers a single damping setting. Our active air spring allows the driver to select between sport and comfort mode, or the system can actively choose the optimum damping characteristics in milliseconds. BILSTEIN OE replacement air springs are built with 100% new parts, restoring the original ride quality of any air suspension system and ensuring consistent damping power for maximum safety. Only the respective BILSTEIN original equipment technology  provides the same driving experience you felt when you first drove your car off the lot.

Features and Benefits:

• Restores original functionality 100%
• Manufactured with 100% new parts for maximum reliability and safety
• Manufactured with 100% new parts for maximum reliability and safety
• Available for all air suspension systems, active and passive
• Individually fine-tuned during BILSTEIN road testing to perfectly match OE air suspension module

Vehicle Fitment and Notes:
